| Date |
'Incident Commander Pro' GIS-Related
Files & Utilities |
File
/ WebLink |
3rd
June 2007
|

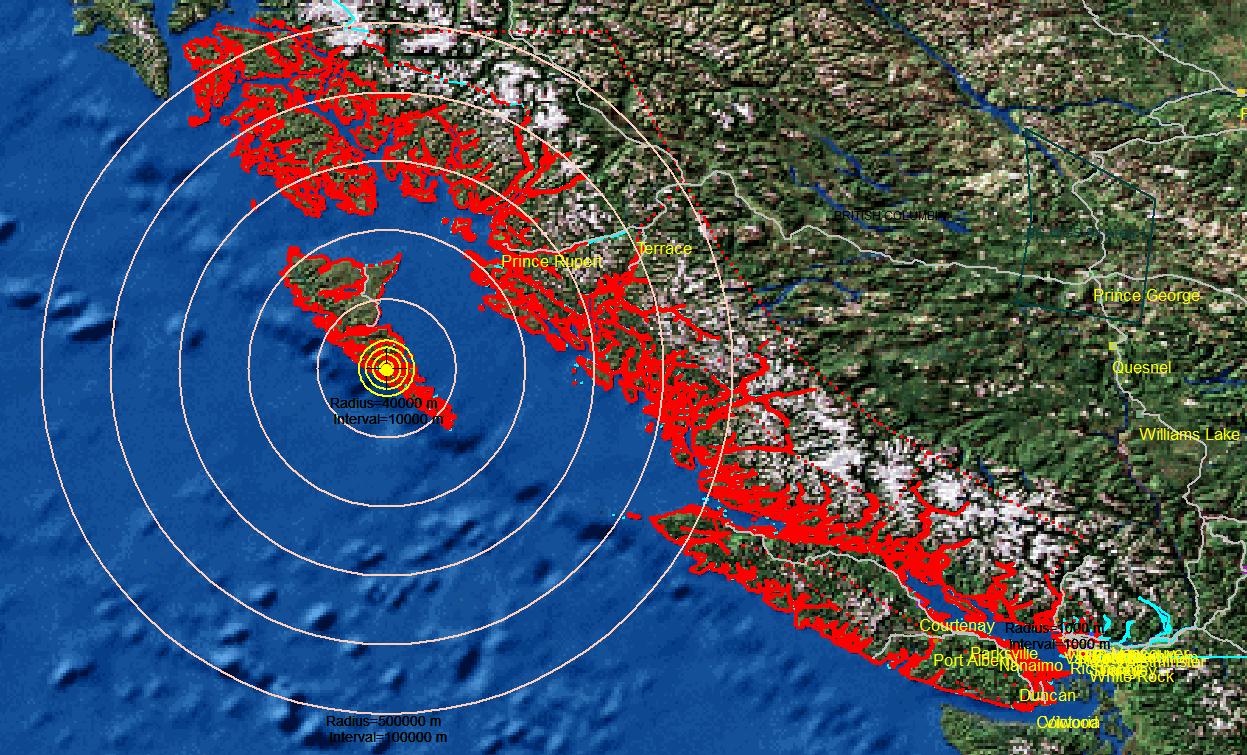

 GIS
Mapping tools
A customizable library of Scalebars,
Grids & Air-Search Planning Templates designed to work with
with the 'Incident Commander Pro's GIS map display. The CAD-based
templates display scales in Miles, Nautical Miles and Kilometer units.
Their appearance, color, font, linestyle, size, scale, rotation and map
location can all be customized to suit the map display.
Unzip the example CAD files to a folder, then add them to the GIS map
using the
'Add Background Layer' button.
|
Scalebars_Grids.zip
Templates as
( .dxf CAD-files) |
3rd
April 2008 |

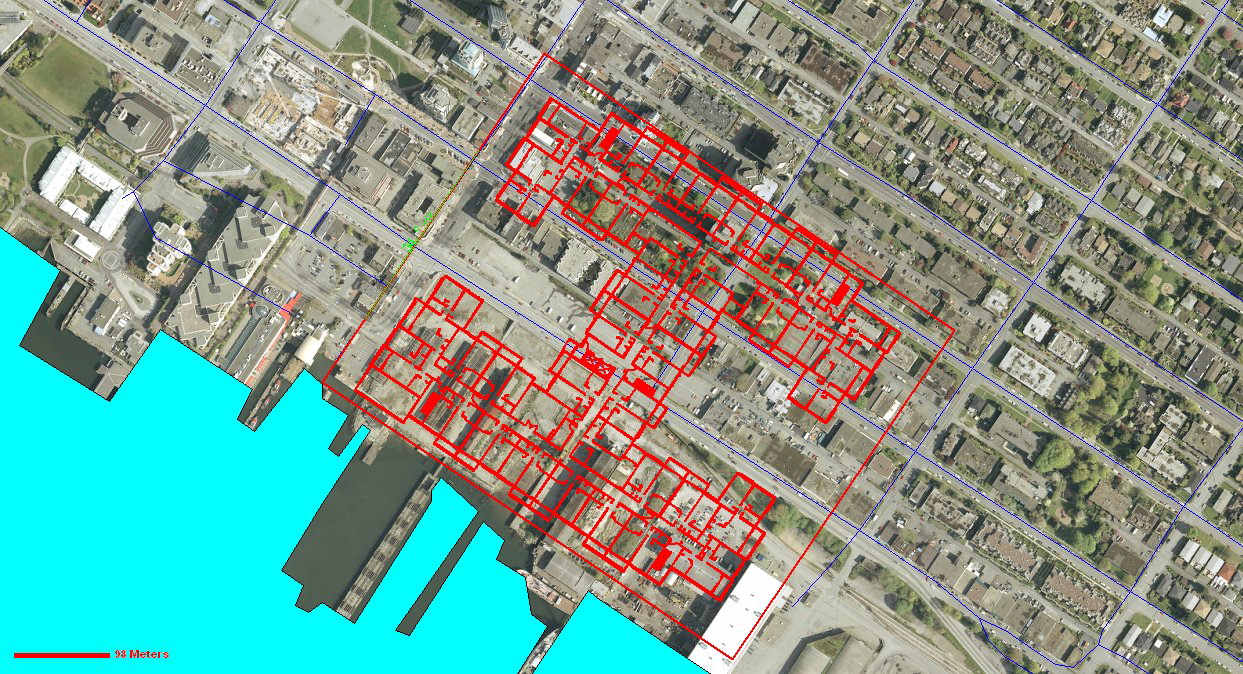

Geo-Locate, Scale & Rotate DWG & DXF CAD-files of
Buildings and Site Plans
Enter the required UTM-Location, Scale & Rotation values into
CAD_MapLocator.xls
Paste the output table into the text
World File eg SitePlan.wld
for the CAD-file SitePlan.dwg or
SitePlan.dxf
Add the geo-located CAD-file to the GIS map using the
'Add Background Layer' button.
|
CAD_MapLocator.xls
(For Geo-locating CAD files)
Example .dwg cad-file
CADSitePlan.zip |
25th
January 2007 |
Example NMEA183 (GPRMC) Trackfiles that can be plotted by
'Incident Commander Pro' . |
SimplifiedNMEA183TrackFile.csv
DetailedMEA183TrackFile.csv Surrey/Vancouver,
BC. UTM Zone 10 |
21st
February 2007 |
 Example
downloaded GPS Track map-file that can be displayed by
'Incident Commander Pro' .
Unzip the Upper_LevelsPoint map-file, then add to the GIS map using
the
'Add Background Layer' button.
(Select the Map Layers legend, STD Labels... TIME field to display the
track's UTC date/time-stamps on the map) |
Upper_LevelsPoint.zip
(GPS track saved as 'shape' map-file)
West Vancouver, BC. UTM Zone 10 |
25th
January 2007 |
To
correctly project a 'shape' file onto the GIS module's NAD83 map display
a companion .prj projection file may be needed.
Copy the NAD83MapProjectionFile.prj file to the same
name as the shape-file.
eg for MyTrackLine.shp:
Copy NAD83MapProjectionFile.prj
to
MyTrackLine.prj
( in the same directory as your .shp file). |
NAD83
Map Projection File
for displaying 'shape' map files
NAD83MapProjectionFile.prj
(text file, opens with Notepad) |
25th
October 2008 |
To
correctly display geo-referenced 'Incident Commander Pro' shapefile maps
of
Routes,
Area &
Labels in other GIS applications
companion .prj projection
files are required.
Select the projection
files for your region and Save Target As... the same name & file
location as the Mission or Default .shp shape-files.
eg for
Mission1_ply.shp:
Right-Click Select
ProjectionICProAreas_WesternUSA_ply.prj
Save Target As...
C:\Program Files\SAR Technology\IC\Gis\Data\Mission\Mission1_ply.prj |
'Incident
Commander Pro'
Map Projection
Files
for displaying geo-referenced
'shape' file
Routes,
Areas &
Labels
in other GIS applications |
25th
January 2007 |

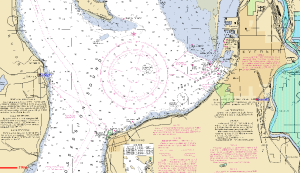

To
correctly scale/position an image file (tif, gif, jpg, bmp, sid, .bil, .gis)
within the map's UTM zone a companion 'world-file' is needed for
each image-file.

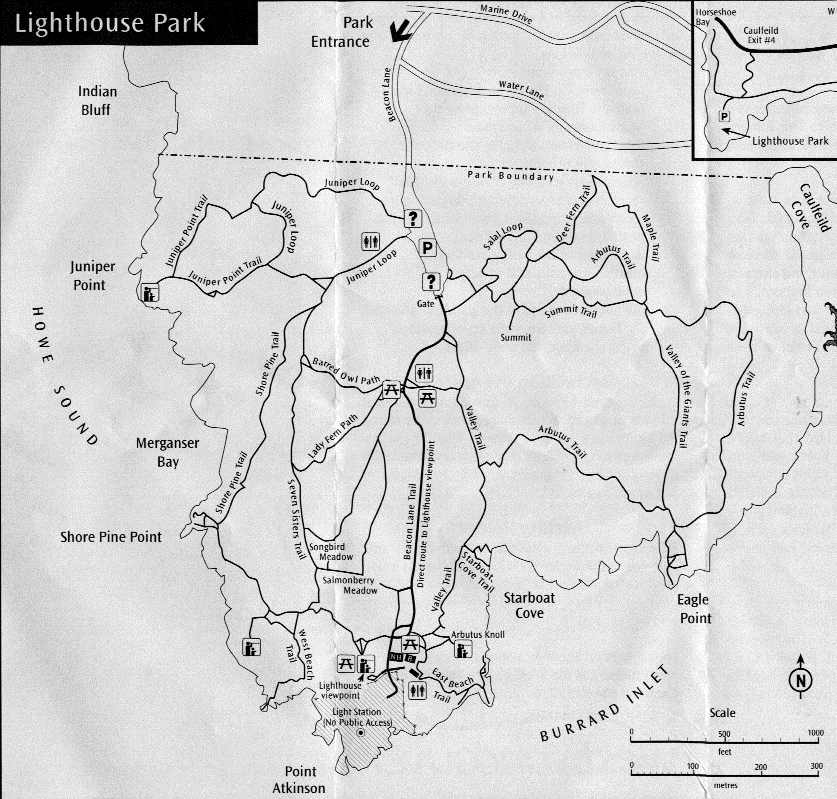

Edit this (North of Equator) example World File, in the same directory
as your image file: LightHousePark.tfw
for LightHousePark.tif
MyMap.tfw for MyMap.tif MyMap.gfw for
MyMap.gif MyMap.jgw for MyMap.jpg
MyMap.bpw for MyMap.bmp
MyMap.sdw for MyMap.sid
MyMap.blw for MyMap.bil MyMap.gsw for
MyMap.gis world-files.
(This example is for a tif image with a 1.6 meter x 1.6 meter pixel
size, and a top left corner
(in UTM Zone 10 North) 0480162 E, 5465433 N) |
Geo-referencing
'World' File
for image files North of the Equator
LightHousePark.tfw
WestVancouver, BC. UTM Zone 10 N
(text file, opens with Notepad) |
6th
May 2007 |
To
correctly scale/position an image file (tif, gif, jpg, bmp, sid, .bil, .gis)
within the map's UTM zone a companion 'world-file' is needed for
each image-file.
Edit this (South of Equator) example World File, in the same directory
as your image file: ProserpineAUS.jgw
for ProserpineAUS.jpg
MyMap.tfw for MyMap.tif MyMap.gfw for
MyMap.gif MyMap.jgw for MyMap.jpg
MyMap.bpw for MyMap.bmp
MyMap.sdw for MyMap.sid
MyMap.blw for MyMap.bil MyMap.gsw for
MyMap.gis world-files.
(Prosperine example is for a jpg image with a 25.0 meter x 25.0 meter pixel
size, and a top left corner
(in UTM Zone 55 South)
0645512 E, 7758587 N) |
Geo-referencing
'World' Files
for image files South of the Equator
ProserpineAUS.jgw
Proserpine, Australia UTM Zone55 S
HeardIsland.tif HeardIsland.tfw
Heard Island, Australia UTM Zone43 S
(text files, open with Notepad) |
9th
July 2011 |
Convert 'Incident Commander Pro'
Route Waypoint (CSV)
Files into
MN DNR-Garmin
& GPS Utility text files
for uploading into a GPS
1. Paste your Incident Commander Pro Route
Waypoint CSV file into the Excel 'ICPro' worksheet, then..
2. Paste the 'MNDNR-Garmin' worksheet into the MNDR_GarminWaypointTable
or paste the 'GPSUtility' worksheet into a GPSU
text-file |
ICPro_to_GPSUtility_MNDNRGarmin
_Waypoints.xls |
17th
July 2009 |
 MN
DNR-Garmin V 5.2.33 Excellent program
for uploading WaypointRoutes
to a Garmin GPS and for downloading Tracks directly to 'shape'
map-files.
Set MN DNR-Garmin projection to ESRI-format NAD83 and load
it's NAD83 Projection file. Downloaded GPS Tracks can then be Saved To
'shape' files (Unprojected) - with automatic projection file creation
- and then directly displayed by 'Incident Commander Pro'. |
MN
DNR-Garmin V5.4
(ArcGIS 9.x compatible version) |
25th
January 2007 |
GPS Utility: Comprehensive program for
uploading Routes to a GPS and for downloading Tracks directly to 'shape'
map-files.
- Track shape-files will require a companion .prj projection file of
the same name. |
GPS Utility |
25th
January 2007 |

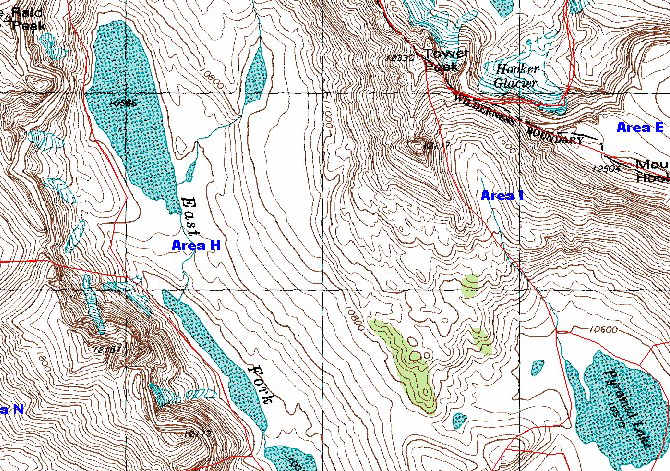

GeoTiff Examiner: Examine/Edit tif image files to view/insert
geo-referencing data. Creates tif 'World' files. |
GeoTiff
Examiner |
25th
January 2007 |
GPSBabel: Flexible program for downloading GPS tracks, waypoints,
and routes. Easily converts from one map-file format to another. |
GPSBabel |
25th
January 2007 |
ShapeNADCON: Converts 'Shape' map-file datum from NAD27 to NAD83 -
for accurate display in 'Incident Commander Pro' |
ShapeNADCON |
7th
November 2007 |

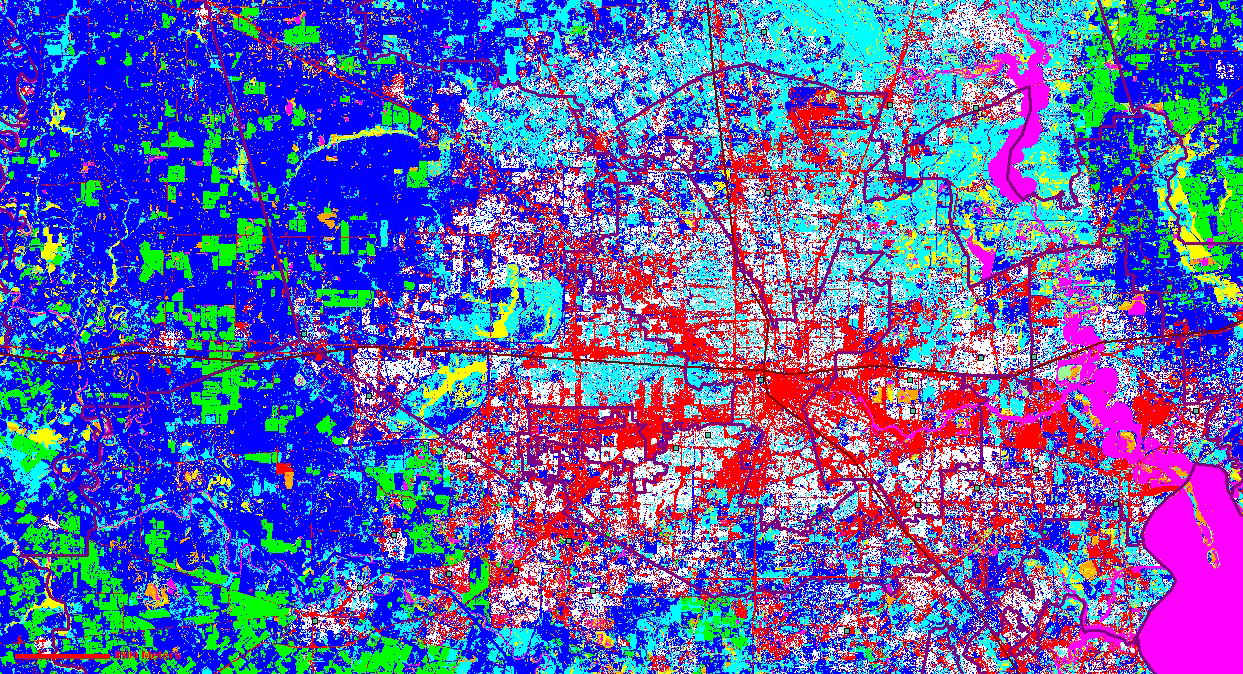

 Import71
Extracts ARC/INFO ".e00" compressed export files
into ESRI .adf Coverage files
for display in 'Incident Commander Pro'
Creates the required data and 'info' directories eg C:\MyMap\rivers
and C:\MyMap\info |
Import71 |
5th
April 2008 |
ER Mapper Image Compressor: Easily
converts .ECW and JPEG 2000 map-files to normal georeferenced jpg files
- for display in 'Incident Commander Pro'. Free version for smaller
image files |
ER
Mapper
Image Compressor |
SAR
Technology: 'Incident Commander Pro' Software
Download
the new 'Incident Commander Pro' software!
Download Incident
Commander Pro -
Evaluate 'Incident Commander Pro! (56MB
Demo)
Installation and
Operation Instructions: (Right-Click
Properties: Run As.. XP SP2, Administrator, Full Control)
PowerPoint Presentations:

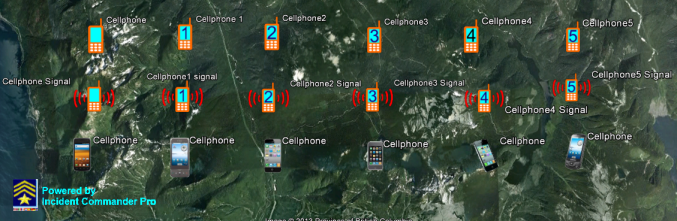

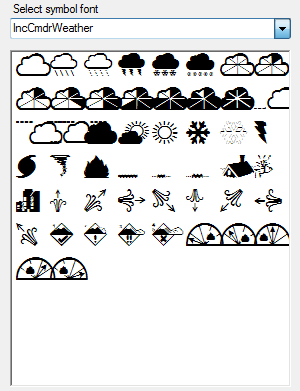

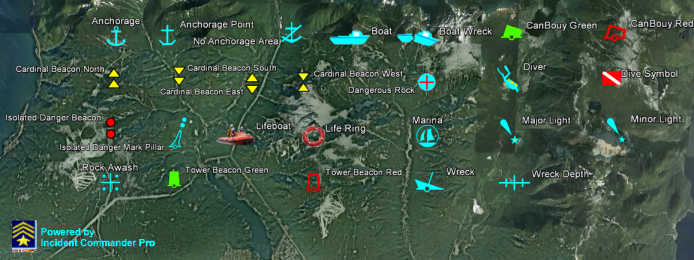

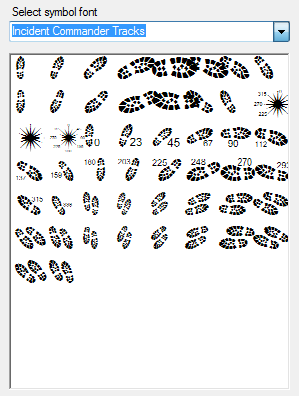

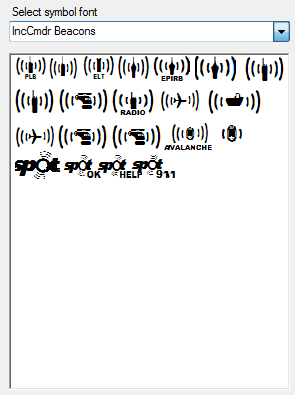

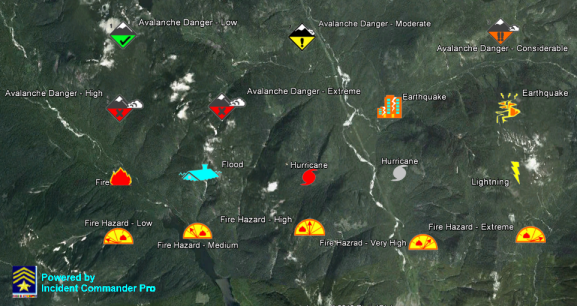

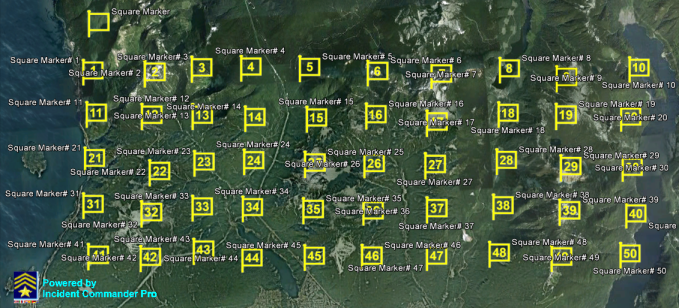

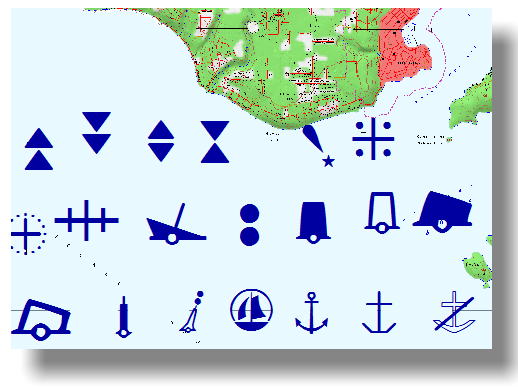

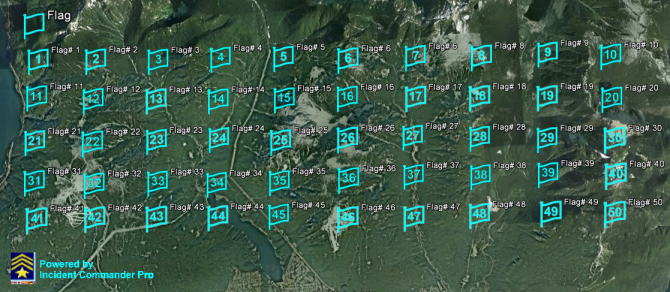

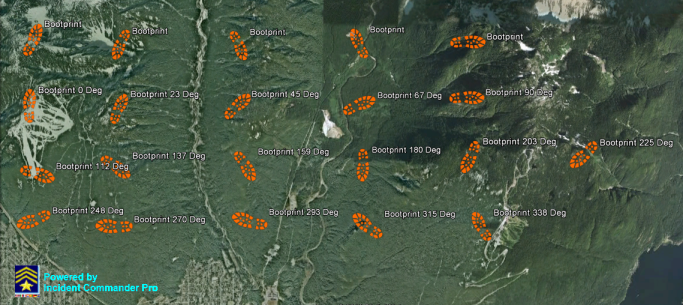

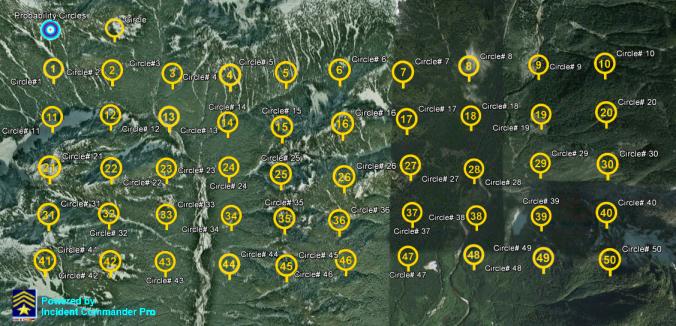

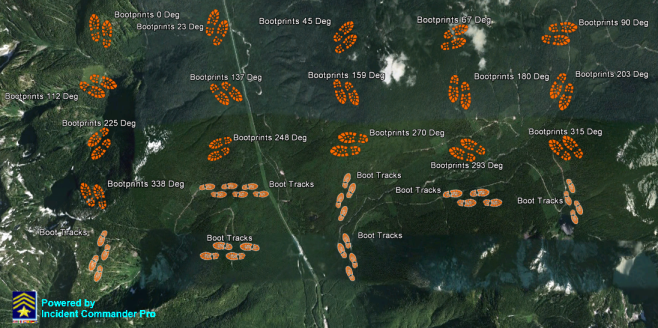

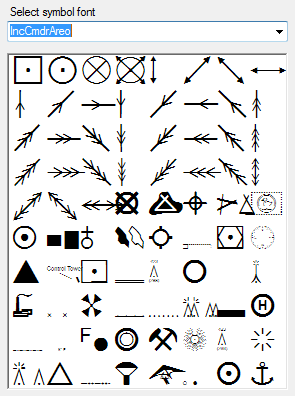

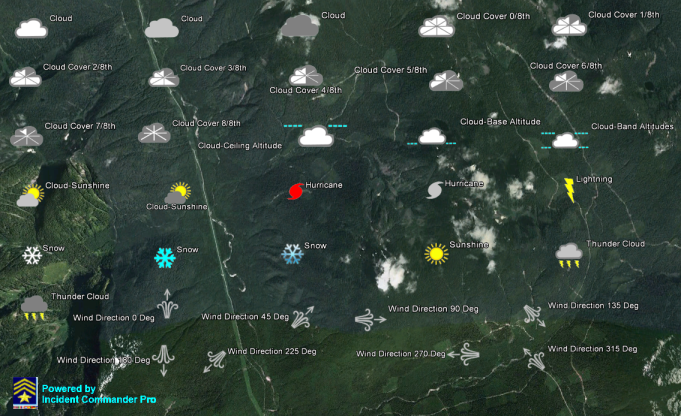

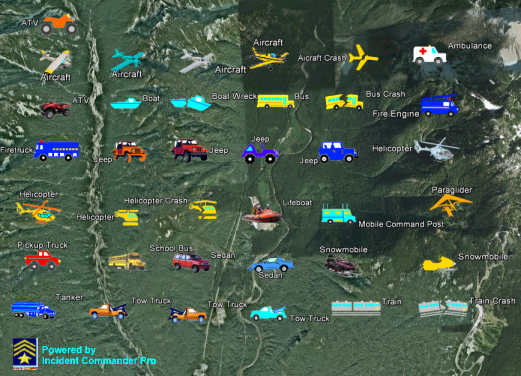

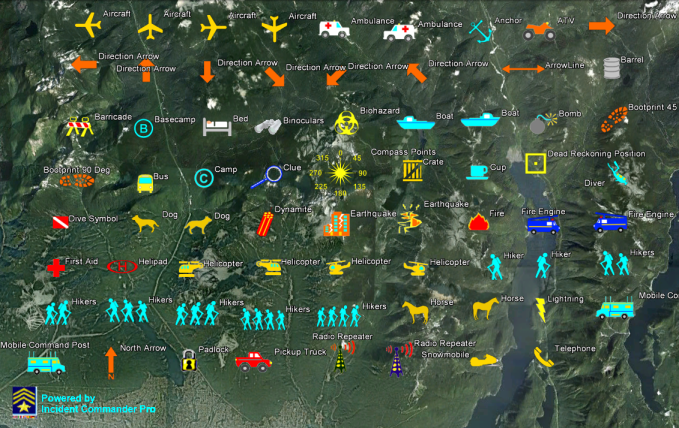

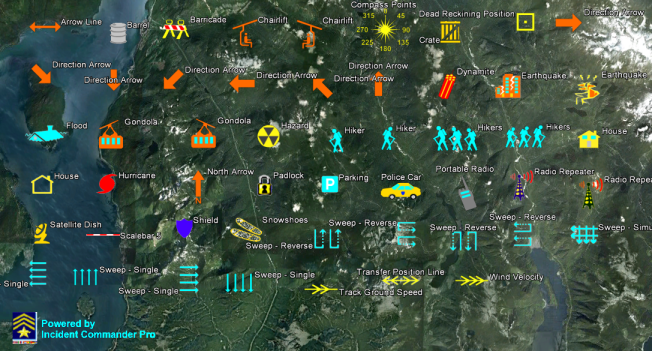

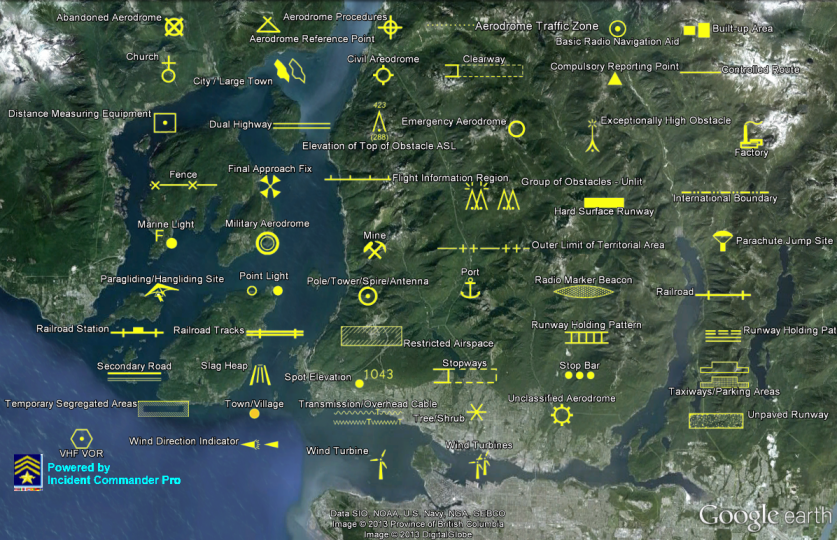

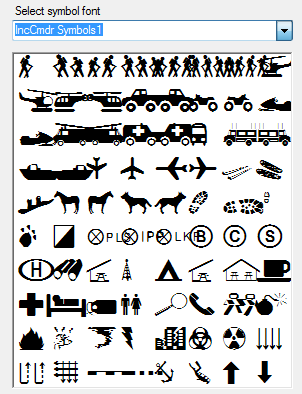

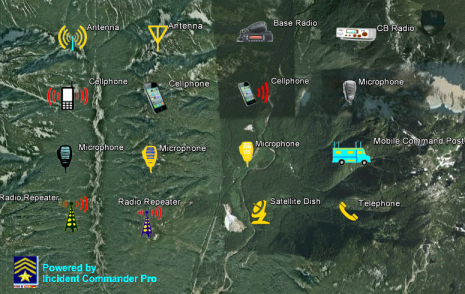

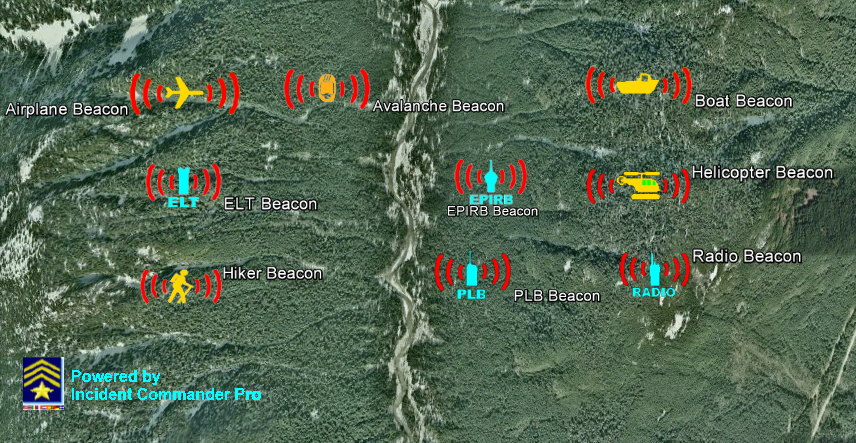

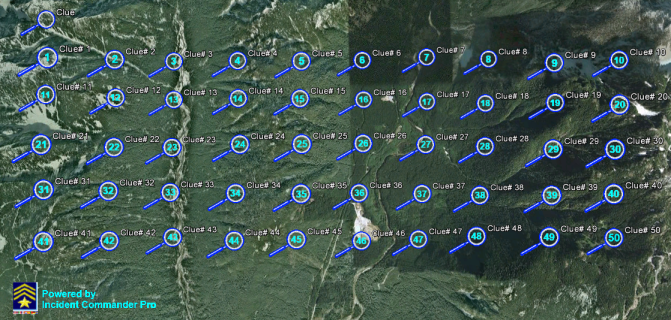

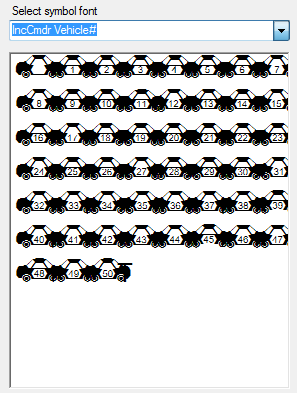

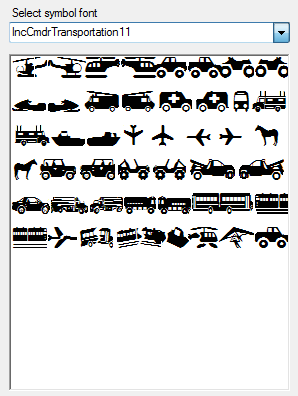

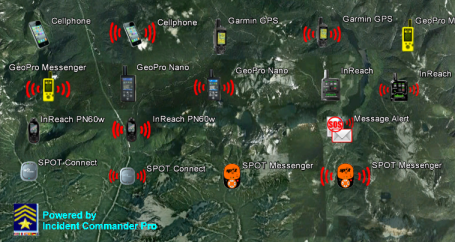

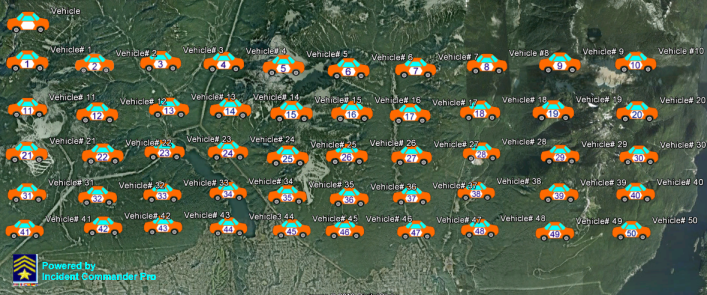

Map Symbols include: Aeronautical, Beacons, Braces, Cellphones,

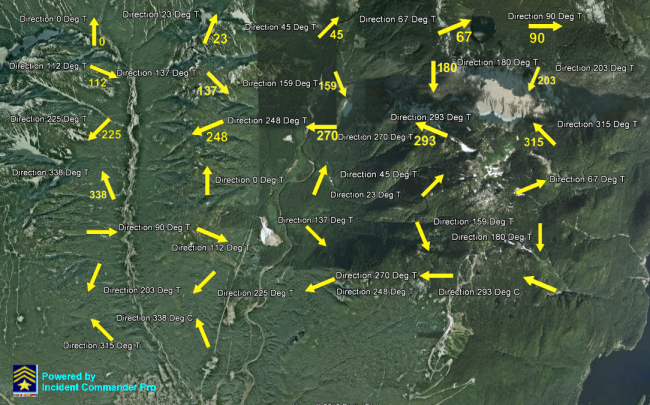

Characters, Circles, Clues, Communications, Directions,
'Incident
Commander Pro' Barcode Module- Personnel Check-In, ID Cards, Form
Navigation
Add powerful Barcode Capability -
Check-In Personnel, Create ID Cards, Navigate Forms
New 'Incident Commander Pro' Print Reports - with
enhanced printer formatting and color support.
Download
the

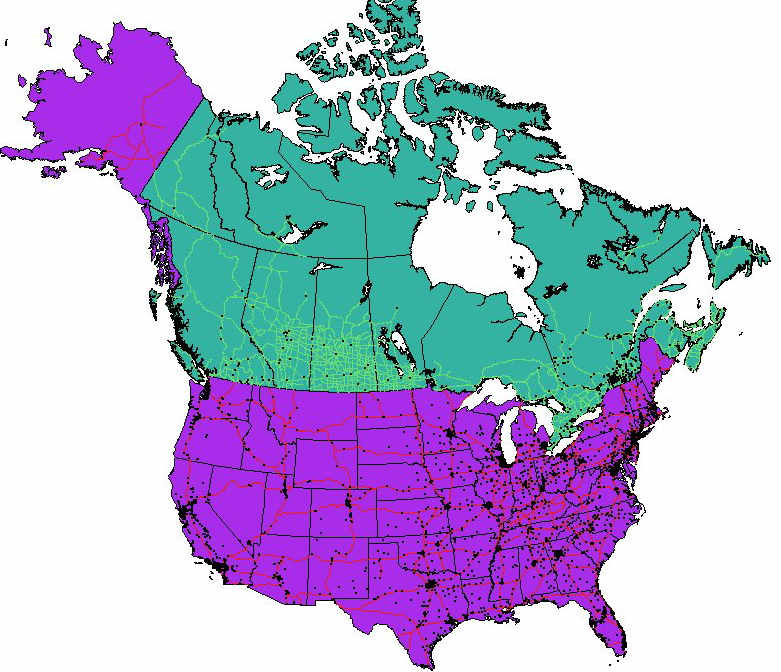

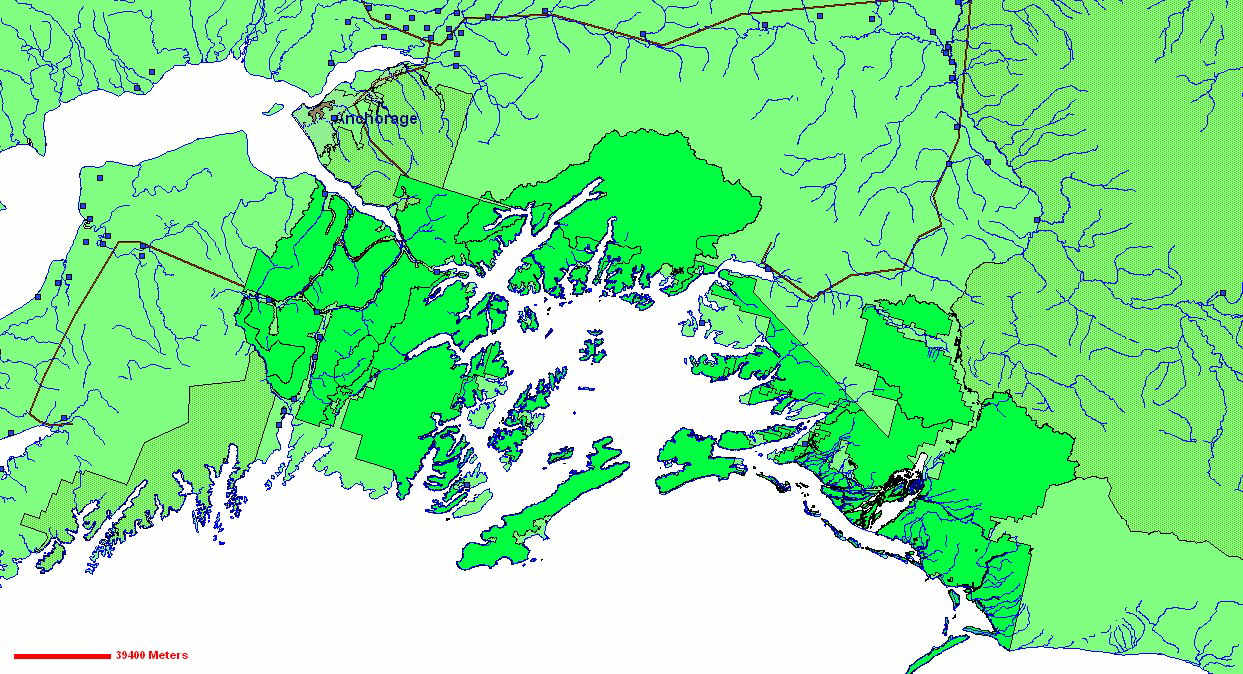

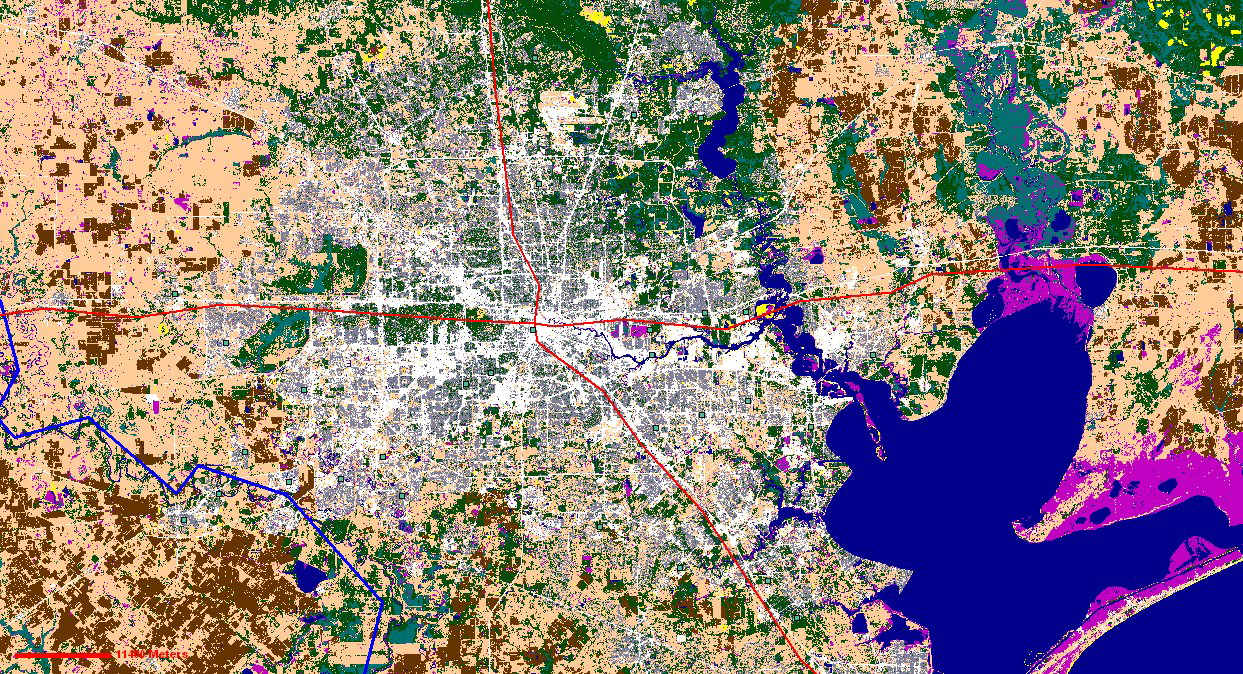

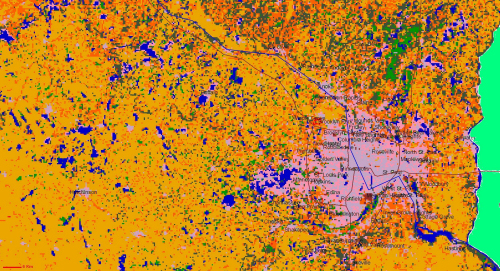

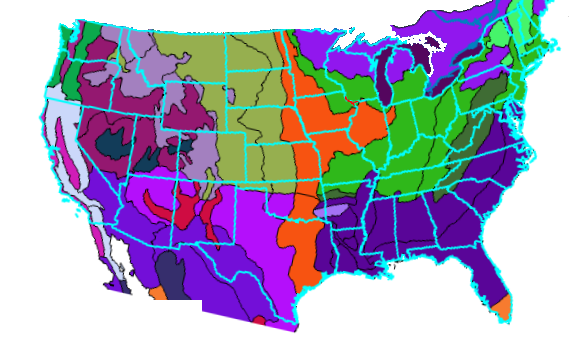

Example 'Shape' USA & Canada Map-Files - States, Cities, Roads
